Manufacturer

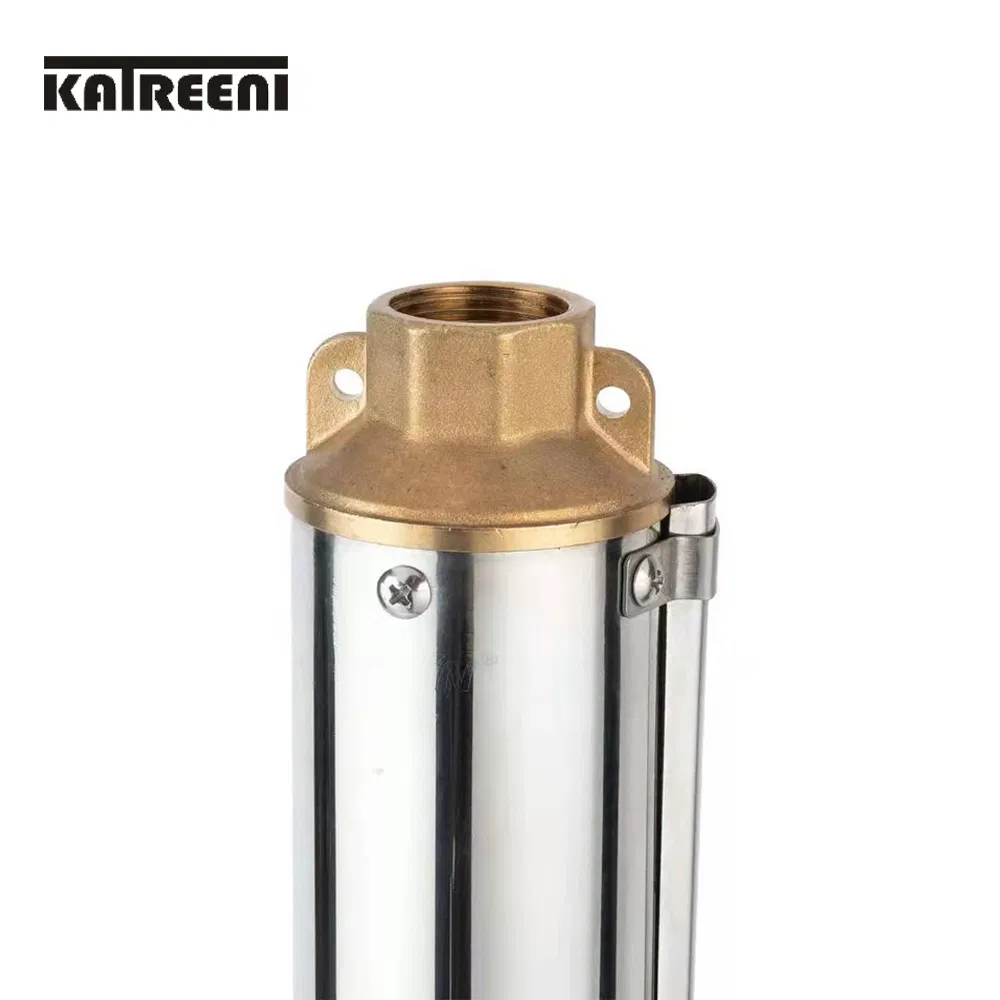

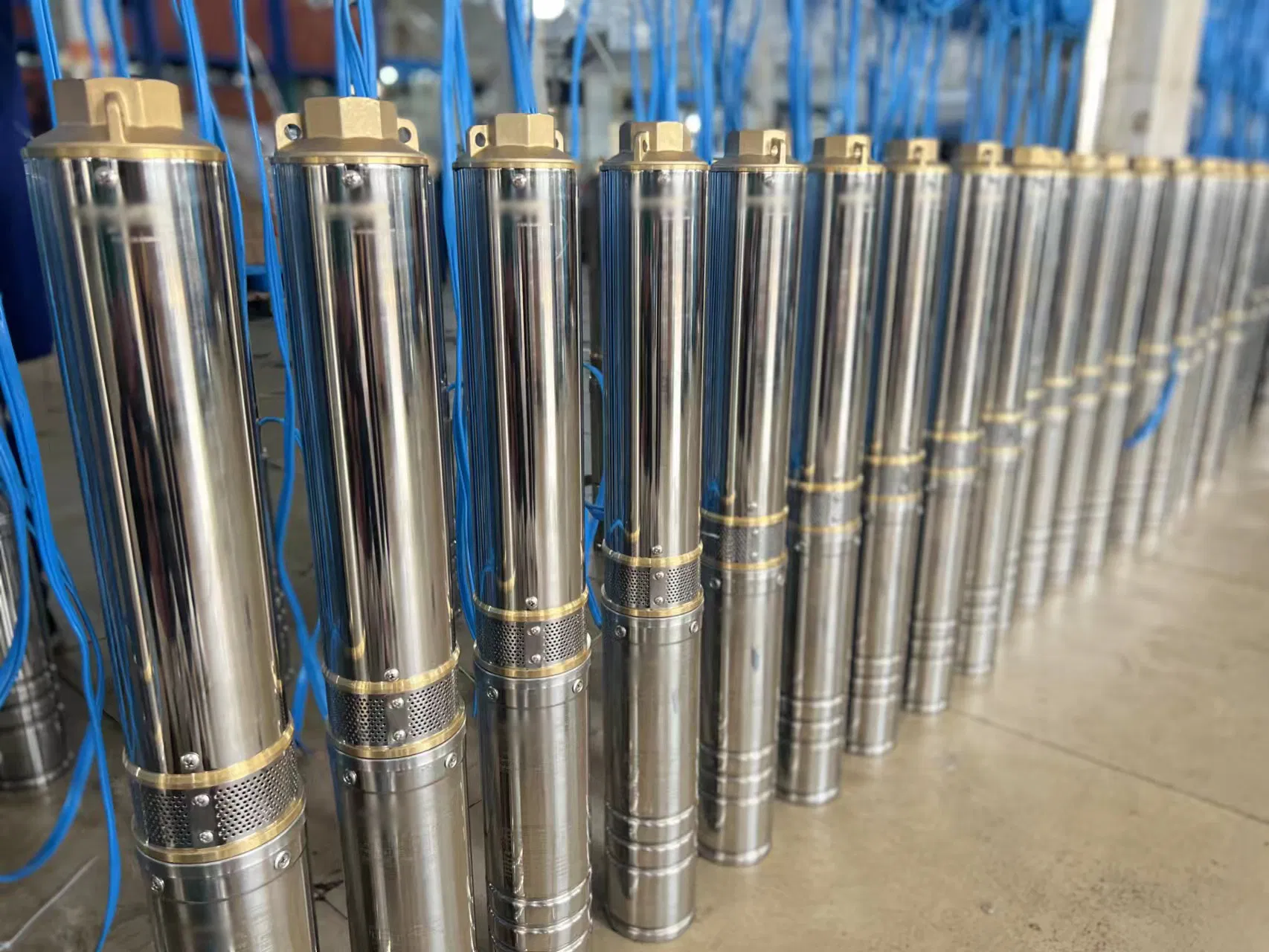

4SD Stainless Steel Submersible Deep Well Water Pump (4SD6)
USD 69,00 – 300,00
/ piece
Il prezzo varia per quantità e specifiche
| Q.tà min. | 50 piece |
| Categoria | Machinery |
26
Anni
98%
Tasso risposta
24h
Tempo risposta
Descrizione prodotto
Nessuna descrizione disponibile. Invia una richiesta per maggiori informazioni.
Specifiche tecniche
| Model NO. | 4SDM6-18-2.2KW |
| After-sales Service | 24 Months Warranty |
| Max.Head | 30m-330m |
| Max.Capacity | 8.4 Cubic Meter/Hour |
| Driving Type | Electricity AC 220/380 |
| Material | Brass/AISI 304 |
| Structure | Multistage Pump |
| Assembly | Centrifugal Pump |
| Power | 0.37kw-7.5kw |
| Start Up | Electric Pump |
| Type | Rewindable Oil Cooling Water Pump |
| Application | Submersible Pump |
| Industry | Civil Pressurizing, Agricultural Irrigation, etc |
| Media | Clear Water /Sandy Water |
| Performance | Rated Flow:6m3/H Rated Head:20m-220m |
| Theory | Centrifugal Pump |
| Suitable Well Size | 4 Inches |
| Outlet | 1.25''/1.5''/2'' |
| Rated Capacity | 6 Cubic Meter/Hour |
| Rated Delivery Head | 20m-220m |
| Outlet/Connection | Brass |
| Pump Materials | AISI304/430/Brass/POM/PC |
| Motor Materals | AISI304/Copper Winding/Silicon Steel 600 |
| Bearing | C&U 7 Series |
| Shaft Coupling | 2Cr13/AISI 304 |
| Pump Shaft | 2Cr13/AISI 304 |
| Motor Shaft | AISI 303 Ss-ASTM 1045/5140 |
| Top Chock | Cast-Iron ASTM No.30/Cast-Cu ASTM C85500 |
| Mechanical Seal | Graphite-Ceramic/Tc Graphite-Silicon Carbide |
| Wear Ring | AISI 304 Ss&Ceramic |
| Seal Lubricant Oil | Oil for Food Machinery and Pharmaceutic Use |
| Transport Package | Carton /Wooden Case |
| Specification | NEMA STANDARD |
| Trademark | OEM/ODM/KATREENI/DOLAY |
| Origin | China |
| HS Code | 8413709190 |
