Advanced Electric Punching Press Machine for High-Volume Fabrication
USD 6200,00 – 6600,00
/ piece
Il prezzo varia per quantità e specifiche
| Q.tà min. | 1 piece |
| Categoria | Machinery |
9
Anni
98%
Tasso risposta
24h
Tempo risposta
Altro da questo fornitore
Descrizione prodotto
Nessuna descrizione disponibile. Invia una richiesta per maggiori informazioni.
Specifiche tecniche
| Model NO. | BLC Series |
| Type | General Punching Machine |
| Punch Shape | Open Punch |
| Slider Movement | Double Action |
| Slider Drive Mechanism | Crank Press |
| Controlling Mode | CNC |
| Automatic Grade | Automatic |
| Power Source | Electric |
| Precision | High Precision |
| Certification | GS, CE, RoHS, ISO 9001 |
| Condition | New |

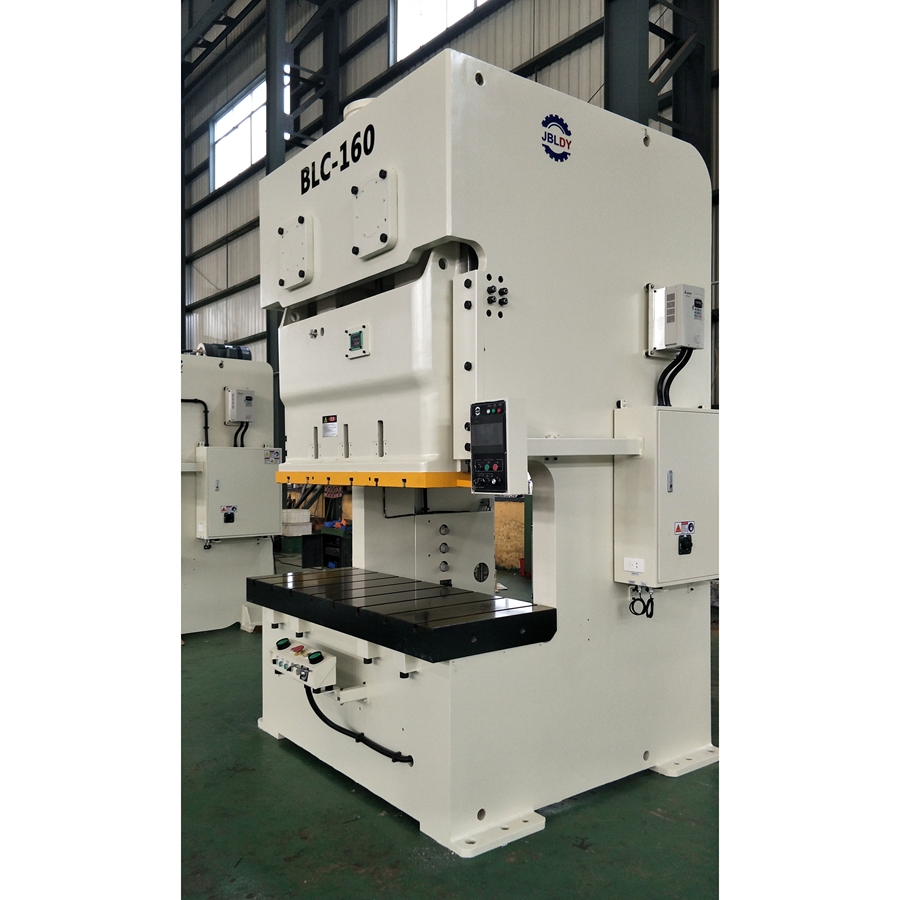

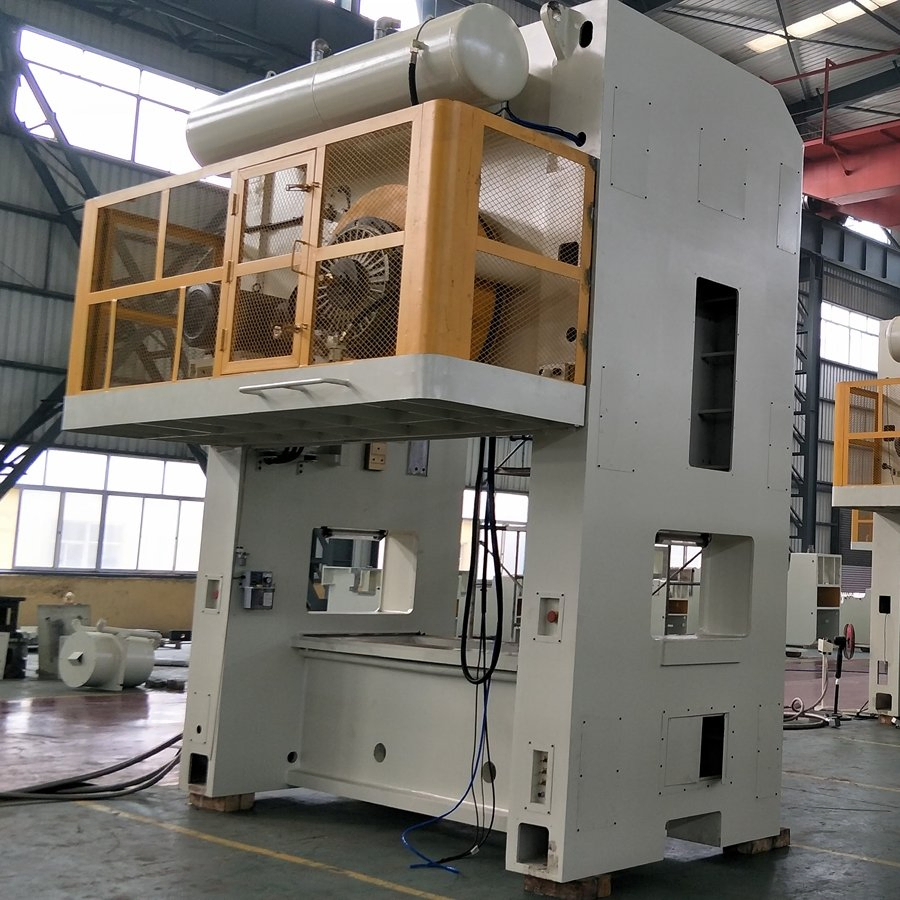

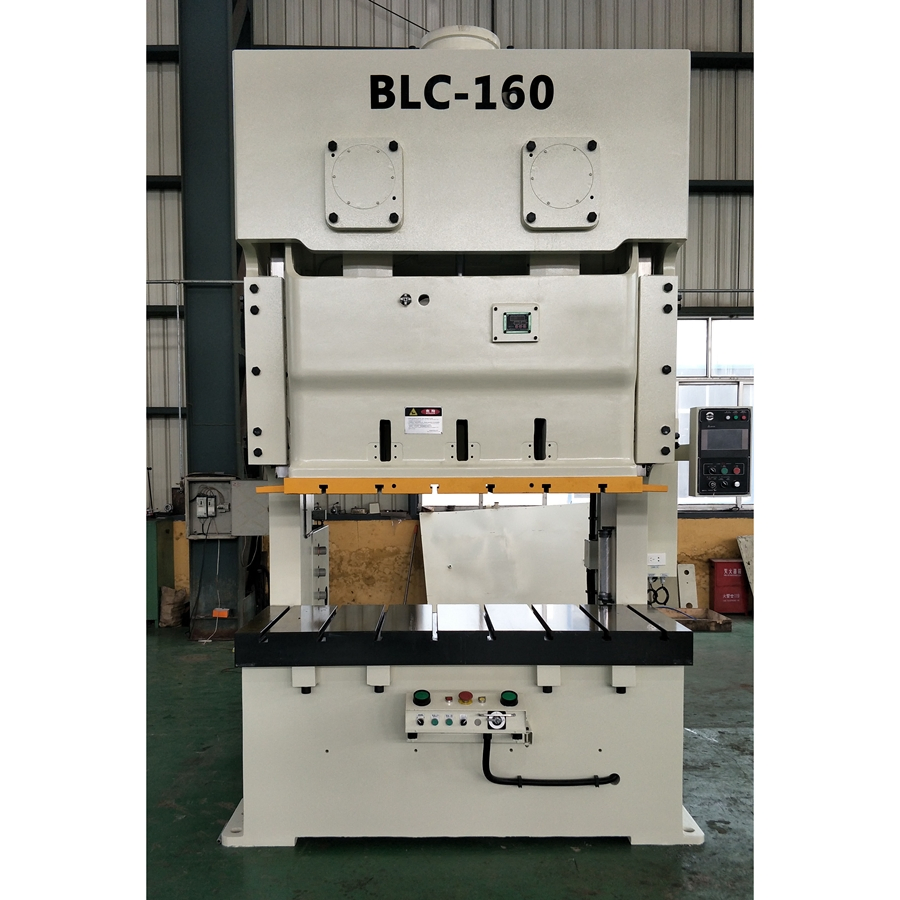

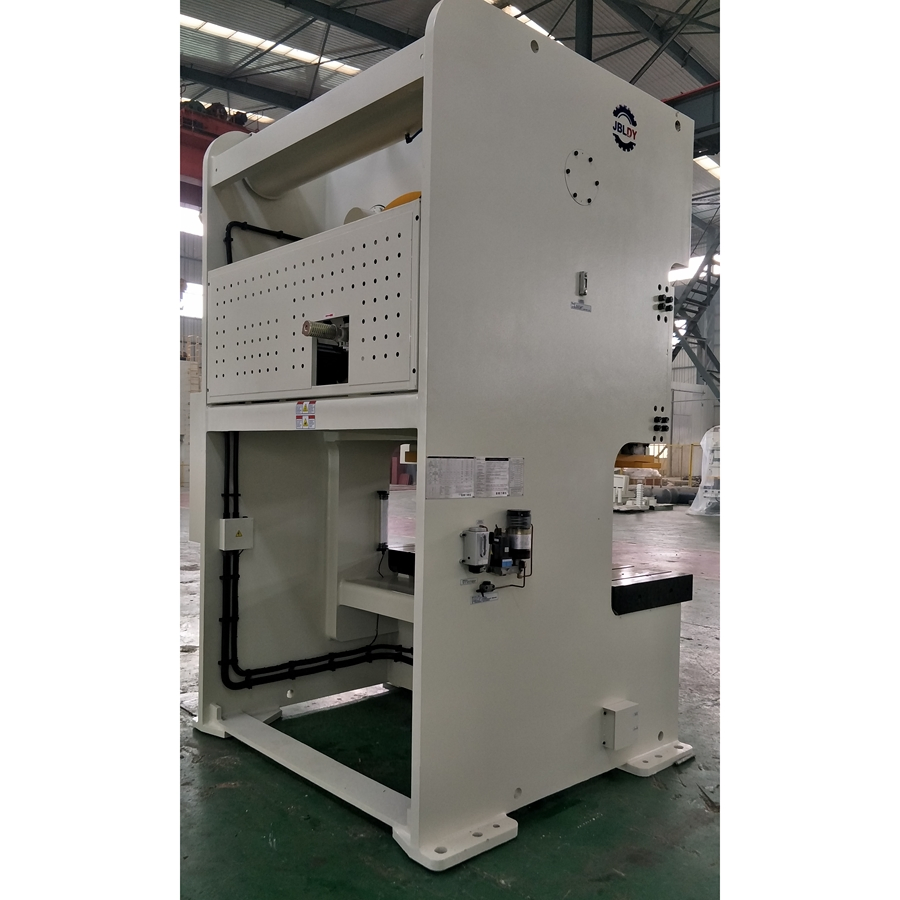

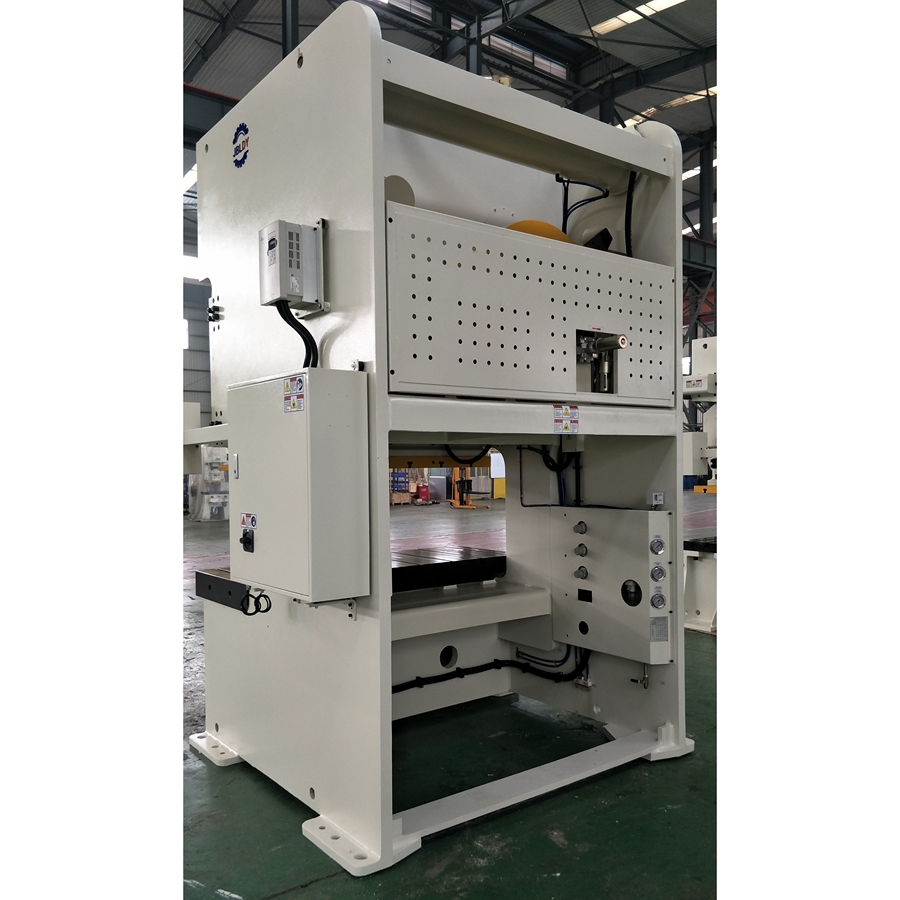

| Product Name | Precision Punch Press |
| Keywords | Punching Machine |
| Model | Blc-110/Blc-160/Blc-200/Blc-250 |
| Capacity (Ton) | 110/160/200/250 |
| Rate Tonnage Point (mm) | 5/3 6/3 6/3 7/3.5 |
| Stable Speed (S.P.M) | 35-65/50-100/30-55/40-85/25-45/35-70/20-35/30-60 |
| Stroke (mm) | 180/110/200/130/250/150/280/170 |
| Die Height (mm) | 400/435/450/485/500/550/550/605 |
| Slide Adjustment (mm) | 100/120 |
| Slide Area (mm) | 1800*650*130 |
| Air Pressure (Kg/Cm2) | 6 |
| Presses Weight (Ton) | 14.2/20/27.5/45.5 |
| Transport Package | Standard Packaging or Customized |
| Specification | Standard Specifications or Customized |
| Trademark | JBLDY |
| Origin | Shandong, China |
