Industrial CNC Hydraulic Press Brake with 800mm Backgauge Stroke for Large Workpiece Positioning
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6
Manufacturer & Trading Company

Industrial CNC Hydraulic Press Brake with 800mm Backgauge Stroke for Large Workpiece Positioning

USD 15800,00 – 73800,00 / piece
Il prezzo varia per quantità e specifiche
Q.tà min. 1 piece
Categoria General
Invia ordine
Shanghai Ants Machine Equipment Co., Ltd.

China

Manufacturer & Trading Company
26
Anni
98%
Tasso risposta
24h
Tempo risposta
Chatta ora
Altro da questo fornitore
Heavy Duty Sheet Metal Press Brake with 18.5kw Main Motor for Continuous Operation
Heavy Duty Sheet Metal Press Brake with 18.5kw Main Motor for Continuous Operation
USD 15800,00
Large Scale CNC Bending Press with 6000mm Table Length for Shipbuilding and Construction
Large Scale CNC Bending Press with 6000mm Table Length for Shipbuilding and Construction
USD 15250,00
Hydraulic Sheet Metal Brake with 60mm/S RAM No Load Speed for High Productivity Bending
Hydraulic Sheet Metal Brake with 60mm/S RAM No Load Speed for High Productivity Bending
USD 15800,00
High Torque CNC Bending Press with 300 Ton Force and 2600mm Column Distance
High Torque CNC Bending Press with 300 Ton Force and 2600mm Column Distance
USD 15800,00
CNC Hydraulic Press Brake with Torsion Bar Synchronization for Parallel RAM Movement
CNC Hydraulic Press Brake with Torsion Bar Synchronization for Parallel RAM Movement
USD 15800,00

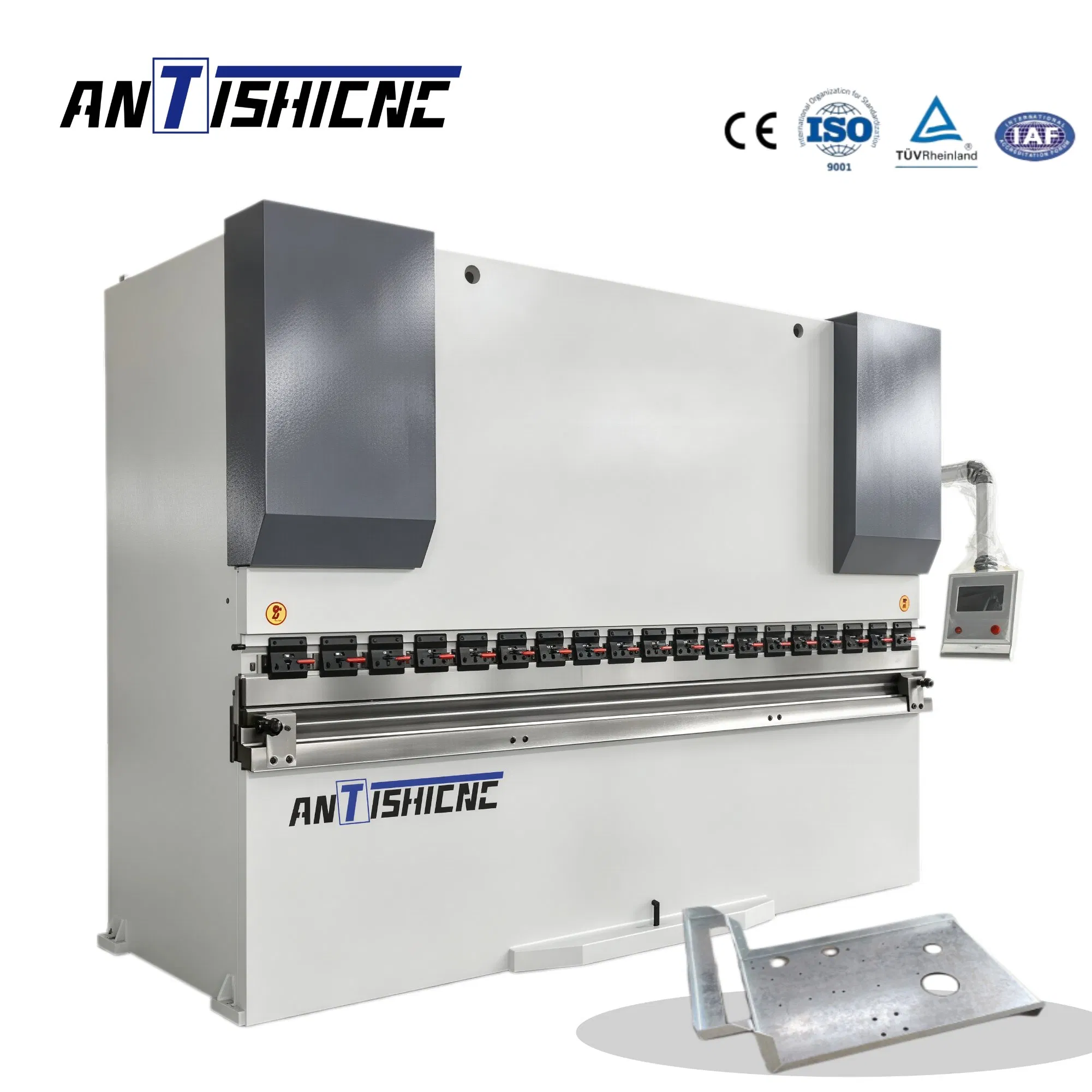

Heavy Duty Metal Bending Press with 50mm/S RAM Return Speed for Efficient Cycle Times
Heavy Duty Metal Bending Press with 50mm/S RAM Return Speed for Efficient Cycle Times
USD 15800,00

Descrizione prodotto

Nessuna descrizione disponibile. Invia una richiesta per maggiori informazioni.

Industrial CNC Hydraulic Press Brake with 800mm Backgauge Stroke for Large Workpiece Positioning
Industrial CNC Hydraulic Press Brake with 800mm Backgauge Stroke for Large Workpiece Positioning

Specifiche tecniche

Model NO.WC67K-300T3200
After-sales ServiceSupport
Waterproof RatingIPX-8
Warranty1-year
ConditionNew
CertificationISO 9001:2000, ISO 9001:2008, CE
AutomationAutomatic
Suitable forCopper, Aluminum, Alloy, Carbon Steel, Stainless Steel
TypeHydraulic Bending Machine
NamePress Brake Machine
SpecificationsWc67K-300t3200
Nominal Force3000kN
Table Length3200mm
Distance Between Columns2600mm
Throat Depth400mm
Slider Stroke250mm
Max. Opening Height450mm
Main Motor Power18.5kw
Main Motor Speed1440rpm
Slider Stroke No-Load Speed60mm/S
Slider Stroke Working Speed7mm/S
Slider Stroke Return Speed50mm/S
Machine Size(L*W*H)3700*2000*3100mm
Transport PackageFactory Standard Packing
Specificationcustomization
TrademarkANTISHICNC
OriginChina
